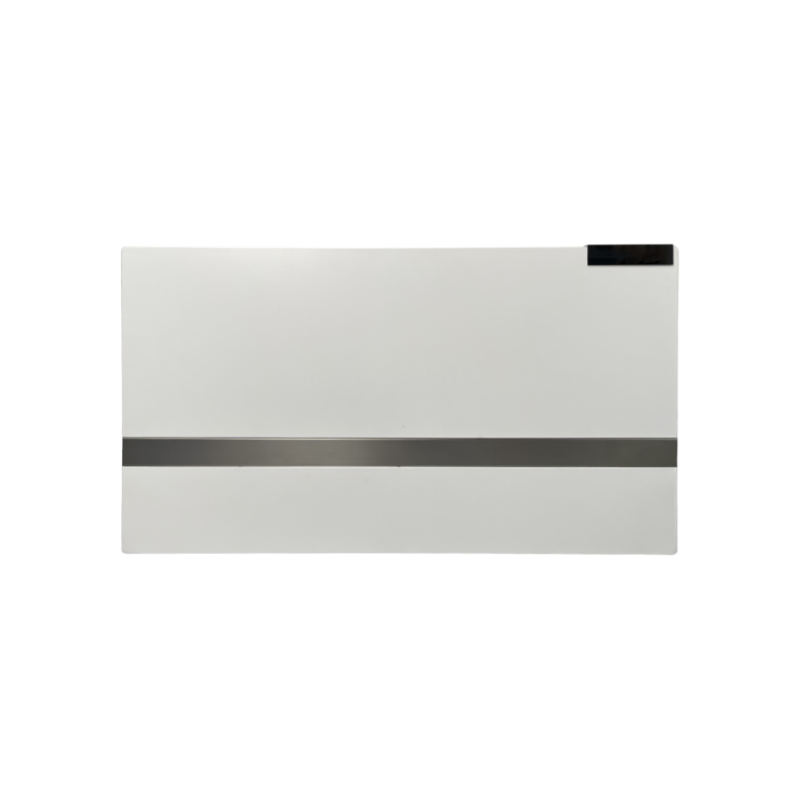

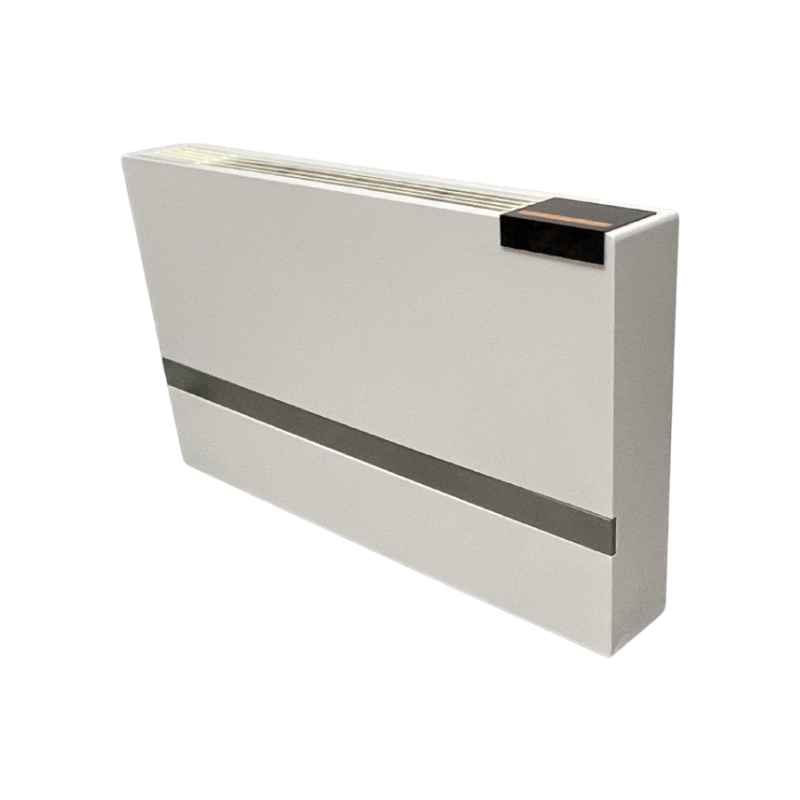

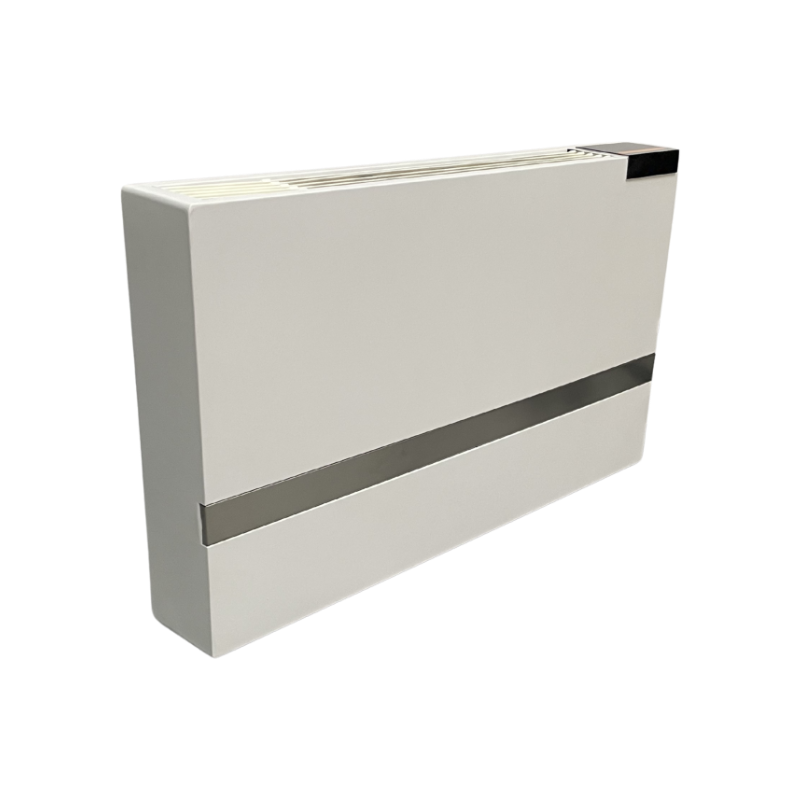

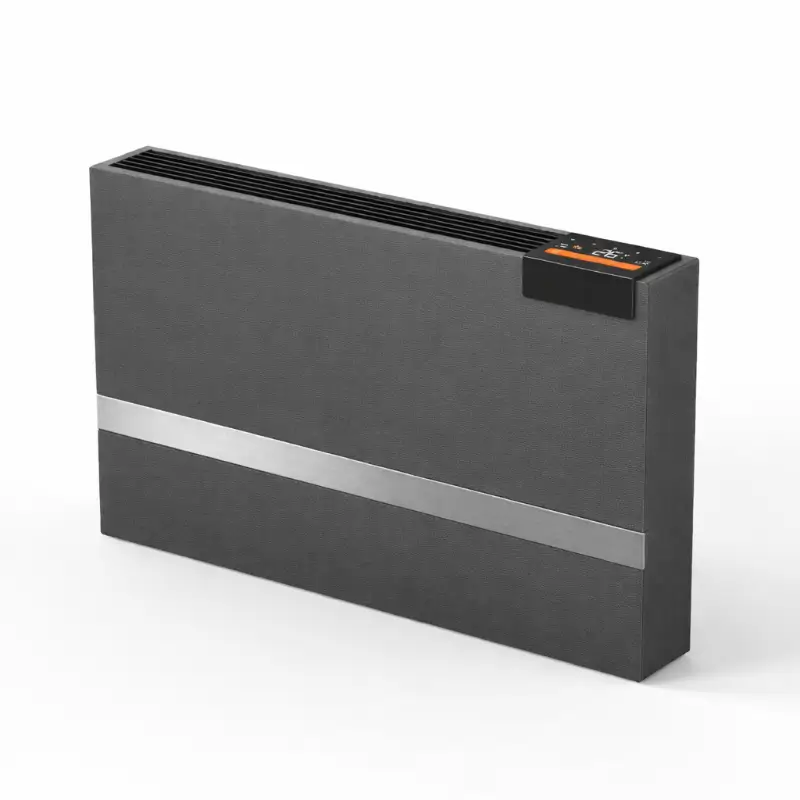

The Luxe Series ultra- thin exposed fan coil unit blends premium aesthetics with flexible engineering, offering seamless floor-standing or wall-mounted installation. Enclosed in a sleek, durable sheet metal casing, it is explicitly designed for high-visibility commercial and residential spaces—including modern apartments, hospital wards, classrooms, retail environments, and industrial workshops. It stands as the definitive, high-efficiency solution for retrofitting older buildings and upgrading complex HVAC systems.
| Model | HT-V-26-LUXE, HT-V-42-LUXE, HT-V-63-LUXE, HT-V-78-LUXE |
|---|---|
| Power Supply | 220-240V~/1Ph/50Hz |
| Power Input | 14W-32W |
| Rated Air Flow Volume | 265-780m³/h |
| Cooling Capacity | 0.90KW-3.64KW |
| Heating Capacity | 0.99KW-3.96KW |
| Controller | Self-contained control |

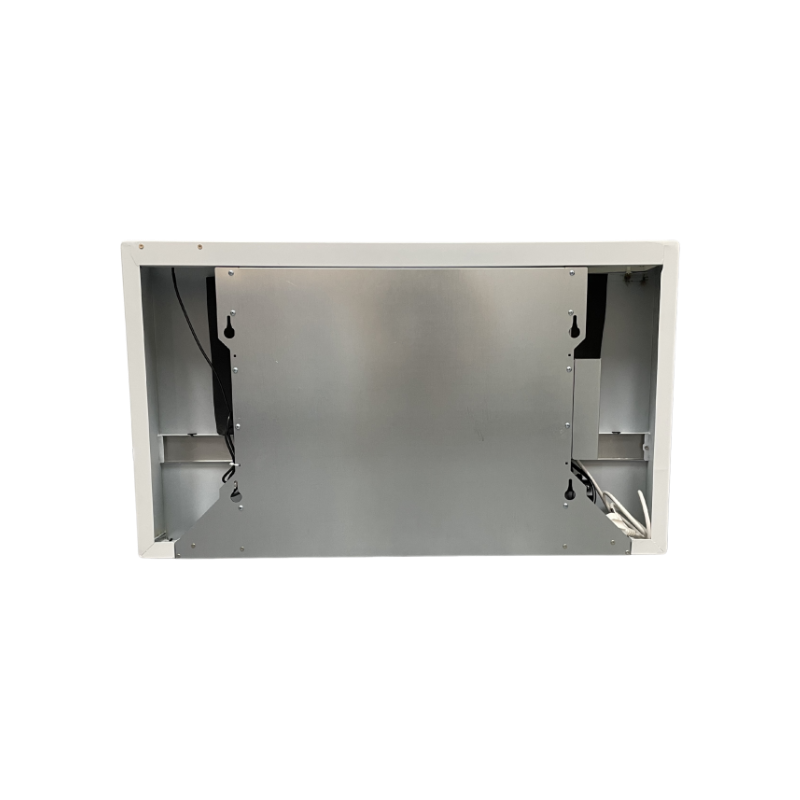

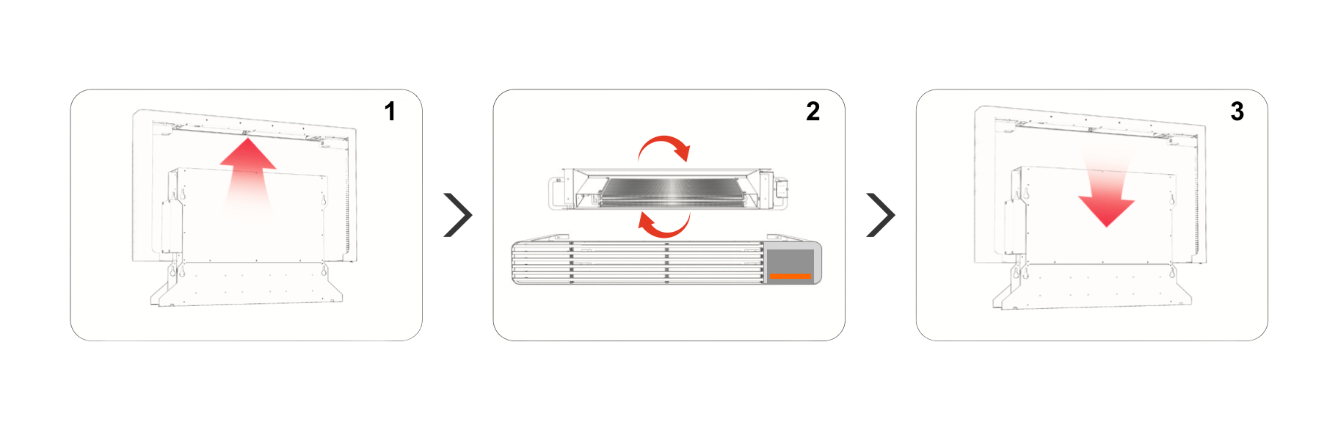

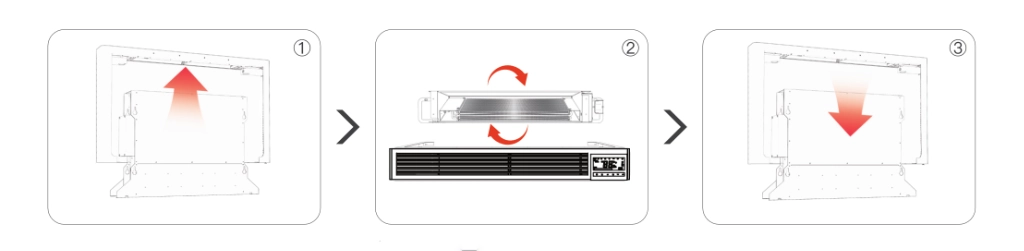

The innovative 3-step quick-detach panel allows for rapid internal access. This modular structure enables field-reversible water connections (Left/Right) in just 1 minute.
Step 1: Loosen the 2 bolts and lift the integrated panel to open.
Step 2: Remove the integrated panel and place it aside.Flip the internal chassis to reverse the water connections.
Step 3: Reinstall the integrated panel and secure the bolts.
Installation or maintenance is now complete.

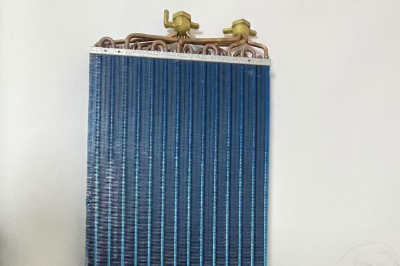

Featuring thickened copper pipes and hydrophilic aluminum foils for enhanced efficiency and durability.

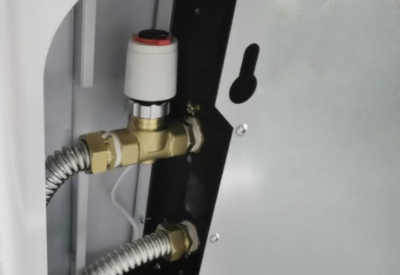

Optional pre-installed motorized two-way valves or flexible corrugated hoses are available to significantly reduce on-site installation labor costs..

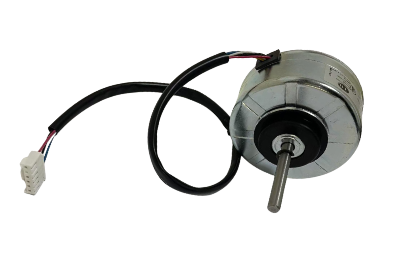

Equipped with an EC motor, offering high efficiency, energy savings, and low-noise operation down to 34 dB(A).
