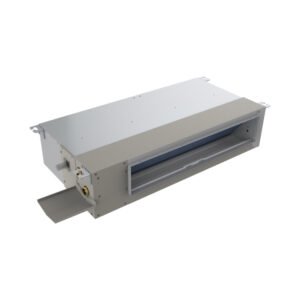

Concealed Fan Coil Unit

Concealed Fan Coil Unit

Concealed Fan Coil Unit designed for horizontal installation within ceiling voids or above suspended ceilings, providing discreet climate control for office buildings, hotel corridors, shopping malls, and server rooms.

Additional information

Model

YX-34-H, YX-51-H, YX-68-H,YX-85-H, YX-102-H, YX-136-H, YX-170-H,YX-204-H,YX-238-H

Power Supply

220-240V~/1Ph/50Hz

Power Input

36W-221W

Rated Air Flow Volume

340-2380m³/h

Cooling Capacity

2.20KW-10.73KW

Heating Capacity

2.81KW-20.50KW

Controller

Remote control

Concealed Fan Coil Unit

Quiet operation

High airflow capacity

Space-efficient

Intelligent control

High energy efficiency

Concealed Installation

Simple and elegant design that complements the overall interior decor and saves living space.

Product Details

Pure copper tubes

Utilizing high-quality 9.52mm pure copper tubes, hydrophilic aluminum foil fins, and an advanced tube expansion process, to ensure optimal contact between the copper tubes and aluminum fins.

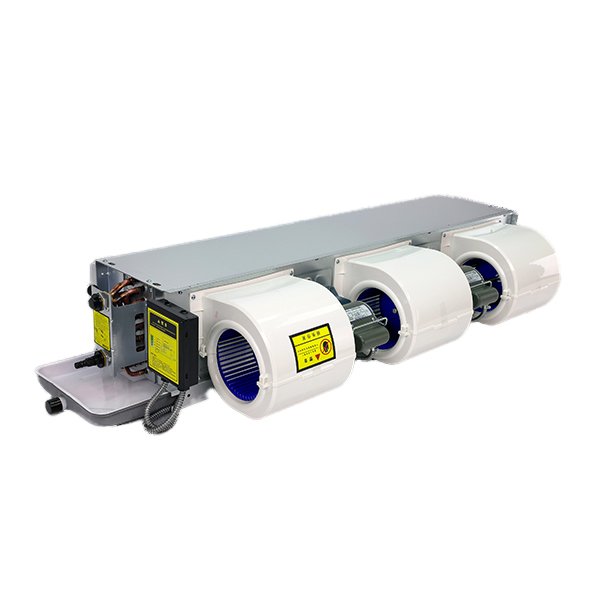

Brushless EC motor

Enables stepless fan speed regulation, high efficiency, quiet operation, and energy savings.

Silent centrifugal fan

The clearance between the impeller and the volute is strictly controlled in 2mm to anti air leakage, strong dynamic balance, no shaking, no noise.

Casing

Compact structure and 1.0mm corrosion-resistant galvanized panel for a robust and deformation-resistant design.

Installation diagram

Return and supply air both on the ceiling

Return air on the ceiling and supply air on the side
